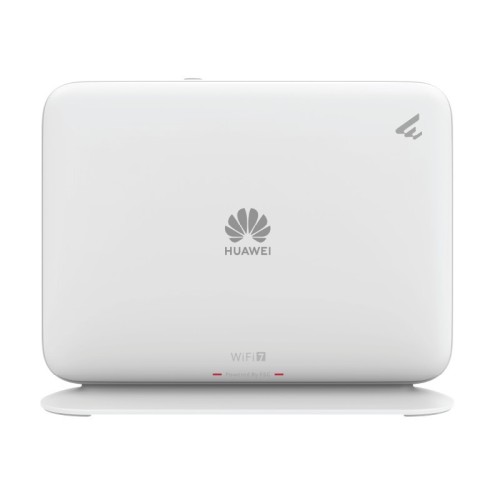

OptiX FG736
  • New
OptiX FG736

OptiX FG736

Out-of-Stock

Consúltanos el precio
Tax excluded

The Huawei eKit ONT OptiX FG736 offers ultra-gigabit connectivity via Wi-Fi 7 with MU-MIMO and high-speed Ethernet ports. It features one-click pairing, tree-shaped mesh networking, automatic LAN/WAN configuration and support for 32 simultaneous devices.



  • Next-generation Wi-Fi 7 MU-MIMO technology
  • Strong anti-interference capability, wide coverage, and network self-healing
  • One-click pairing and automatic networking
  • Ethernet port auto-sensing for LAN or WAN mode
  • Mesh network (tree type)
Huawei
FO-FG736

Specifications

Huawei eKitOptiX FG736

Dimensions (H × W × D)

140 mm × 188 mm × 35 mm (without base)

150 mm × 190 mm × 52 mm (with base)

Weight (excluding adapter)

Approximately 325 g

Operating temperature

0 °C to 40 °C

Operating humidity

5% – 95% RH (non-condensing)

Power supply

Powered by external adapter (see product label)

Static power consumption

6.5 W

Maximum power consumption

12 W

Surge protection

AC power (adapter): 6 kV common mode / 4 kV differential mode

GE port: 2.5 kV standard mode

Protection rating

IP20

Heat dissipation

Natural cooling

NNI

2.5GE, GE or Wi-Fi (NNI/UNI multiplexing)

UNI

2.5GE uplink: 1 × 2.5GE + 2 × GE + Wi-Fi 7 (2.4 GHz & 5 GHz)

GE uplink: 2 × 2.5GE + 1 × GE + Wi-Fi 7 (2.4 GHz & 5 GHz)

Wi-Fi uplink: 2 × 2.5GE + 2 × GE + Wi-Fi 7 (2.4 GHz & 5 GHz)

Installation

Vertical desktop placement

Antenna type

Built-in antenna

Wi-Fi 7 (2.4 GHz / 5 GHz)

IEEE 802.11 b/g/n/ax/be (2.4 GHz)

IEEE 802.11 a/n/ac/ax/be (5 GHz)

2×2 MIMO on both bands

Channel bandwidth: 20/40/80/160 MHz

Antenna gain: 4 dBi (2.4 GHz), 5 dBi (5 GHz)

Air interface rate: 688 Mbit/s (2.4 GHz) / 2882 Mbit/s (5 GHz)

Maximum users: 64 (32 per radio)

WMM, Beamforming, Band Steering, 4096-QAM, 160 MHz, WPA3, MU-MIMO, MLO, Multi-RU

2.5GE port

RJ-45 port

Auto-sensing speed: 10/100/1000/2500 Mbit/s

MAC address learning with configurable limit

GE port

RJ-45 port

Auto-sensing speed: 10/100/1000 Mbit/s

MAC address learning with configurable limit

Main features

Plug and play with Huawei gateway

One-click pairing and automatic Mesh networking

Automatic Wi-Fi configuration synchronization

Automatic LAN/WAN detection

Routing mode and bridge mode

Automatic PPPoE/DHCP detection

Web interface (Web UI)

Software backup and rollback

IPv4/IPv6 dual stack, NAT/NAPT, UPnP, DDNS, DNS support

SPI firewall and parental control
