SFP+ LR 10 Km

Name: SFP+ LR 10 Km
Brand: Sopto
SKU: SFP+ LR 10 km
Availability: OutOfStock

Out-of-Stock

Consúltanos el precio

Tax excluded

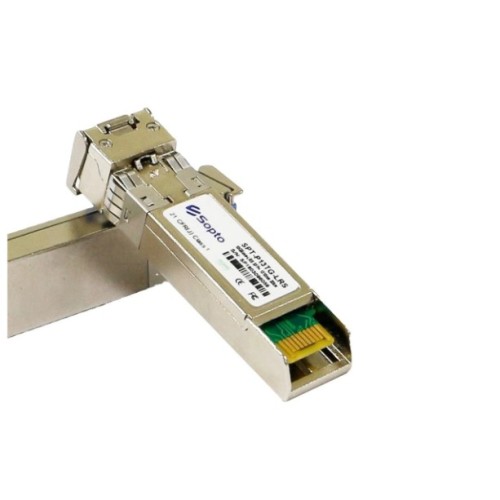

The SFP+ 1310 nm 10 Km SM 10 Gb/s transceiver is a high performance module that supports a double data rate of 10 Gbit / s for Giga Ethernet. It has a transmission distance of 10km at λ of 1310 nm and SM. For LC duplex connector. It is compatible with the electrical specifications of SF. Hot-pluggable SFP+.

The SFP+ 1310 nm 10 Km SM 10 Gb/s consists of three sections or parts: An FP laser transmitter, an integrated PIN photodiode with a transimpedance preamplifier (TIA) and an MCU control unit. All modules meet the class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472

Brand Sopto

Reference SFP+ LR 10 km

CHARACTERISTICS

Optical interface compatible with IEEE 802.3ae 10GBASE-LR

Electrical interface compatible with SFF-8431

Hot plug

DFB transmitter 1310 nm,

photo detector PIN

Operating temperature: 0 to 70 ° C

Low energy consumption

Applicable for 10km / 20km SMF connection

Fully metallic housing for better performance in EMI

Advanced firmware allows client encryption information to be stored on a transceiver

Cost-effective SFP + solution, allows higher port densities and higher bandwidth

APLICACIONES

10GBASE-LR a 10.3125Gbps

10GBASE-LW a 9.953Gbps

Otros enlaces ópticos

CONCEPT	ESPECIFICATIONS
TRANSMITTER
Wavelength λc	1260-1355 nm (min-max)
RIN12 OMA (max)	-128dB/Hz
Optical Return Loss Tolerance (min)	12 dBm
Extinction Ratio ER	3,5 dB (min)
Side Mode Suppression Ratio (min)	30 dB
RECEIVER
Wavelength λc	1260-1355 (min-max)
Sensitivity	-12,6 -14,4 dBm (min-max)
Overload	0,5 dBm
OPERATING CONDITIONS
Data Rate	G ethernet 10,325 Gbps
Power Supply Current Icc	300 mA
Operating Case Temperature	standar 0°C + 70°C
