ONT Huawei EG8010Hv6
ONT Huawei EG8010Hv6

ONT Huawei EG8010Hv6

€30.10
Tax excluded

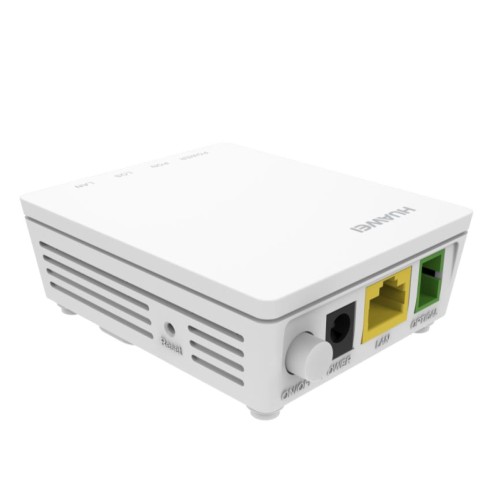

The ONT Huawei EG8010Hv6 is an optical network (ONT) terminal of the Huawei FTTH solution. With the use of GPON technology, it offers ultra-broad band access for residential users and small businesses. The EG8010H incorporates a self-adapting GE / FE Ethernet port. The EG8010H has high-performance streaming capabilities to ensure an excellent experience with VoIP, Internet and high-definition video services.

The EG8010H incorporates a Ethernet port GE.

The minimum purchase order quantity for the product is 2.



The ONT Huawei EG8010Hv6 has 1 GE port.

Optical network (ONT) terminals of the EchoLife EG series are user devices in Huawei's FTTH (fiber to housing) solutions; they allow access to ultra-wideband for residential or small business users (SOHO) that use GPON technologies.

The ONT of the EchoLife EG series has POTS ports and FE / GE automatic negotiation Ethernet ports, which allows for high performance transmission capabilities.

Optimize services with future guarantees through Huawei's EchoLife EG series ONT, which include three main categories: bridge, bridge + voice and gateway.

Huawei
EG8010Hv6

Plug-and-play (PnP) function: Internet and IPTV services can be implemented with a simple click on the NMS and no on-site configuration is required.

Remote diagnosis: the remote fault location is implemented through the precise positioning feeder and connection cables and the identification of software and hardware problems.

High-speed transmission: transmission at GE line speed.

Datasheet

To see the ONT datasheet click on the link

CONCEPT

ESPECIFICATIONS

GPON

Class B+



Authentication secure mode: SN, password or SN+password



Upstream/downstream FEC

VLAN

VLAN filtering, VLAN transparent transmission,

Voice function

protocols SIP & H.248



Media stream and signaling stream separation

WIFI functions



Maintenance functions

managed remotely using TR 069 by Felix

(W×D×H)

117mm×95mm×27mm

Service interfaces

1xGE

Weight

<500g

Operating Environment

Temperature: 0°C  + 40°C



Humidity: 5%-95%, without condensations

Power suply

Output adaptor : 11V-14V DC, 0.5 a

Energy cosumption

3.8w
